WINEMAKER

winemaker

Made exclusively on customer specifications, our winemakers are characterized by the robustness of the materials used and the care taken over the finishes.

Materials

First choice sheets in Aisi304L / Aisi316L produced in European steelworks, with certificate of origin and casting number.

Structure

Roof: conical or conical decentralized "French".
Plating: cylindrical, parallelepiped or truncated cone "a pandoro";
Bottom: inclined plane with an angle of choice.

Mounting: on legs with adjustable feet, on skirt in Aisi304 / 316L or top on reinforced concrete base.
Accessories
Manhole covers
Anti-stagnant sanitary covers.
Dimensions: Ø300mm, Ø400mm, Ø500mm.
Closures: wing nuts, flag-shaped and swivel-foldable.

Group level
Aisi304 case calibrated millimeter, plexiglass tube and taps with return.

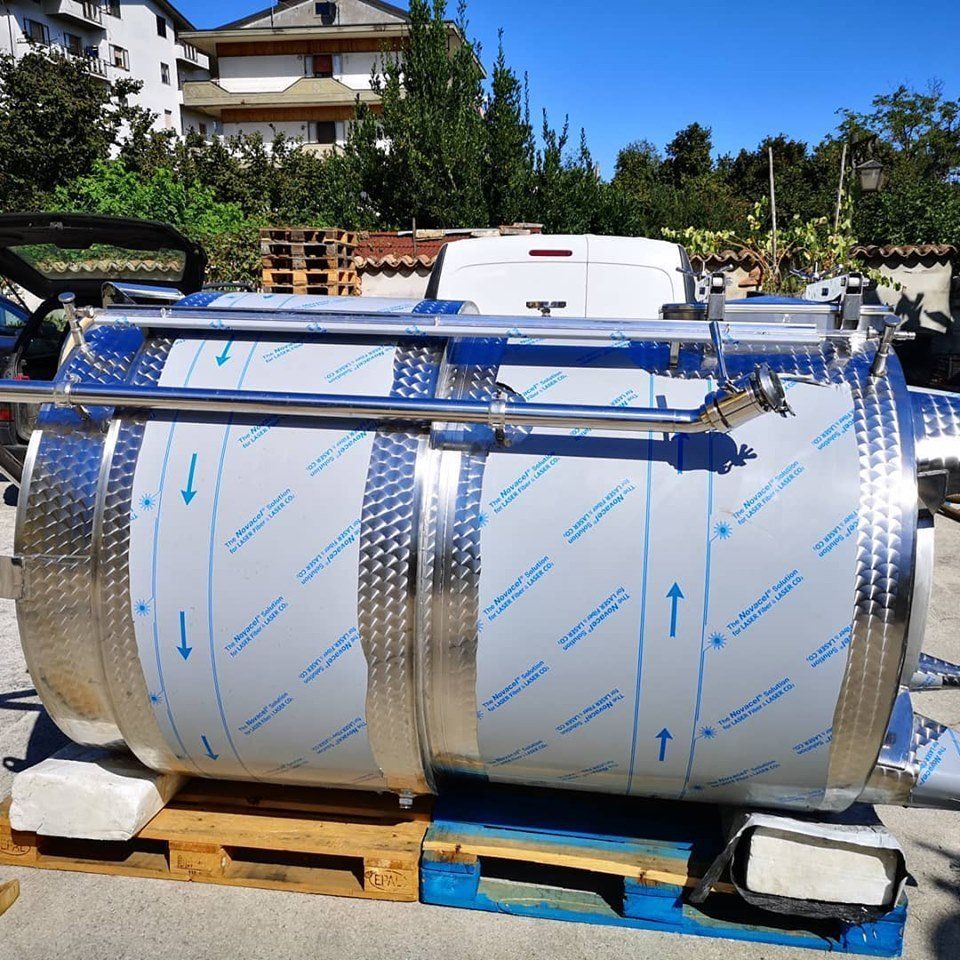

Refrigeration pockets
Thermoregulation pockets at maximum efficiency possible with "honeycomb" system.
Fully TIG welded and tested up to a pressure of 8 Bar.
Complete insulation and coating with sheet metal in Aisi304 / Aisi316L, for greater efficiency and energy savings.
Possibly also available "duct" pockets.

Replacement system
Reassembly kit including pomace sprayer choosing between "Chinese hat", mechanized gravitational or mechanized with gear motor. Pipe in Aisi304 / 316L with a choice of glossy, satin or 2B food finish.
Stainless steel impeller mixed flow replacement pump with shut-off valves.

Portelle
Wide range of doors available in the catalog. Rectangular doors that can be installed both horizontally and vertically with Aisi304 handwheels. Circular bottom doors Ø300mm, Ø400mm and Ø500mm.
Elliptic inspection door.
Pneumatic / hydraulic door with switch and manageable via joystick.

Red wine expulsion
Automatic expulsion of the pomace thanks to the installation of rotating blades in Aisi304, motor and epicyloid reducer.

Valves
Total and partial exhaust valves made from billet, in Aisi304 / 316L.
Various models available and various sizes.

Management and control
Framework for the management and automatic control of the various stages of winemaking.
Analog or touch-screen PLC commands with simple and intuitive management software and possibility of remote control.
Choice of Aisi304 or PVC case.

Other accessories available in the catalog and installable.

FINISHES

External finishes: a choice between flowered, Scotch-Brite, 2b or glossy BA.
Interior finishes: to be chosen between 2b food and sanitary BA gloss.
